UVC SLIM TROFFERS

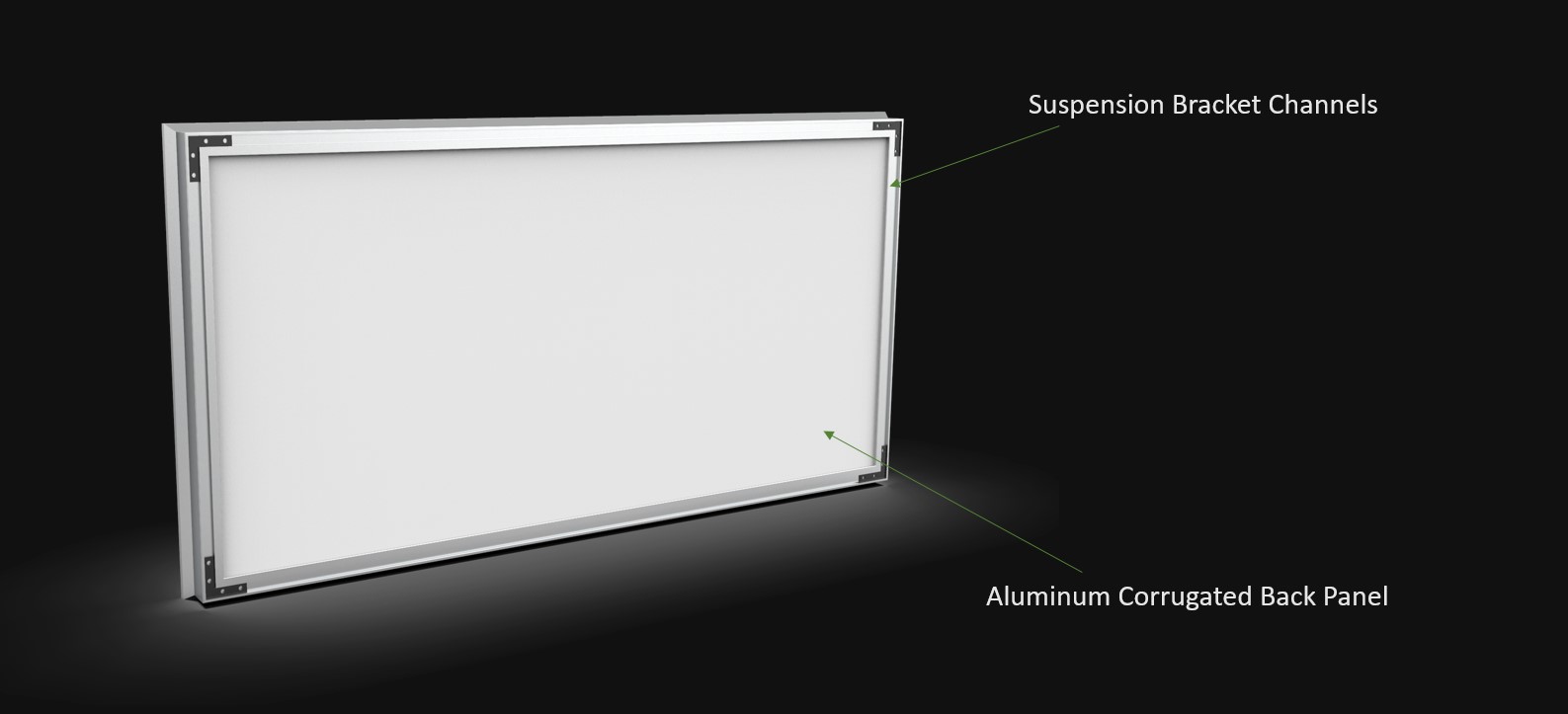

We designed a slim and stylish UVC troffer housing that can be easily resessded in suspended ceiling or suspeded with cables.

Our UVC troffers work with ToroMesh® LED lighting technology, a cost efficient and easy maintainable solution for large LED lighting systems.

...	UVC-TROF-22L	UVC-TROF-22XT	UVC-TROF-42L	UVC-TROF-42XT
UVC Wavelength	269-275 nm
Power / Wattage	25.2W	46.2W	50.4W	92.4W
Intensity Output Per LED	18,000 μW/cm²
LEDs Per Unit	42	77	84	154
Input Voltage	100-277vAC
LED Driver	36W / 12vDC PWR-IP67-SLM-36W-12V	60W / 12vDC PWR-IP67-SLM-60W-12V	60W / 12vDC PWR-IP67-SLM-60W-12V	100W / 12vDC PWR-IP67-SLM-100W-12V
Unit Weight exluding cover	12.21 lbs / 5.54 kg	12.68 lbs / 5.75 kg	18.78 lbs / 8.52 kg	19.53 lbs / 8.86 kg

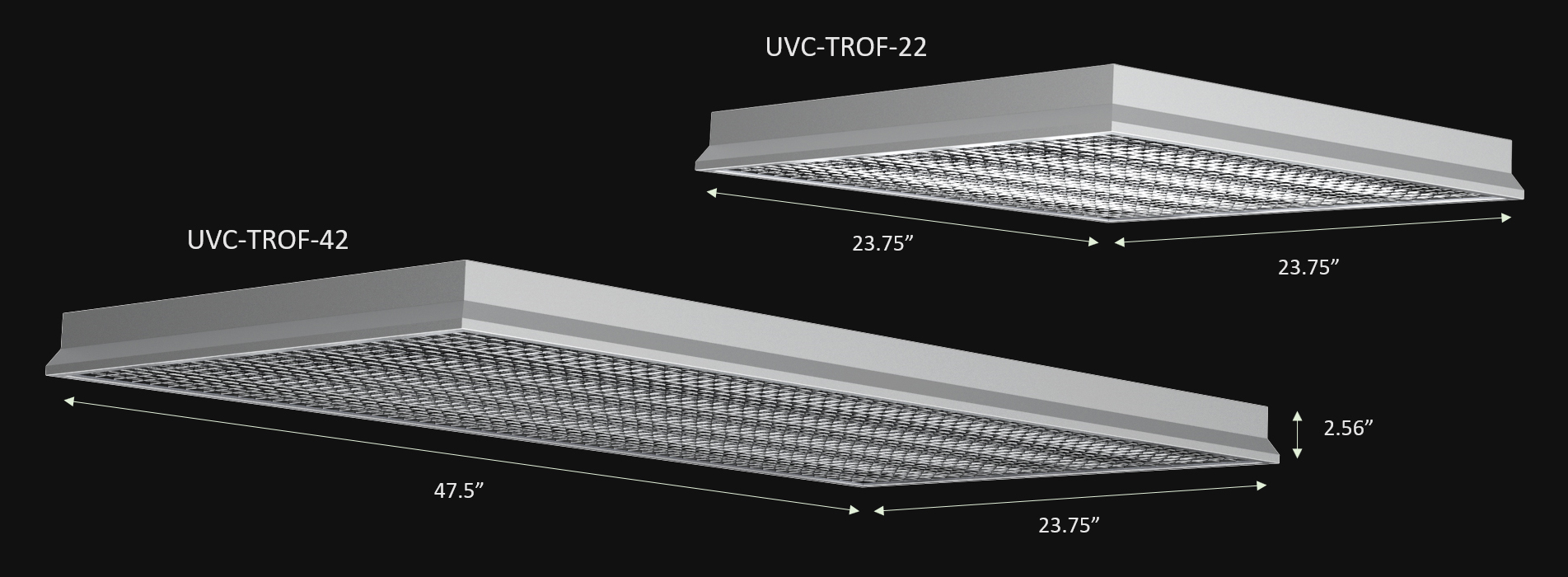

Dimensions	23.75" X 23.75" X 2.56"		47.5" X 23.75" X 2.56"
Frame / Casing	6063 T5 Aluminum, Anodized Sandblast
Louver (optional)	Eggcrate Chrome Plated (polystyrene) or Aluminum Extended Mesh
Cord Length	25cm standard or custom lengths

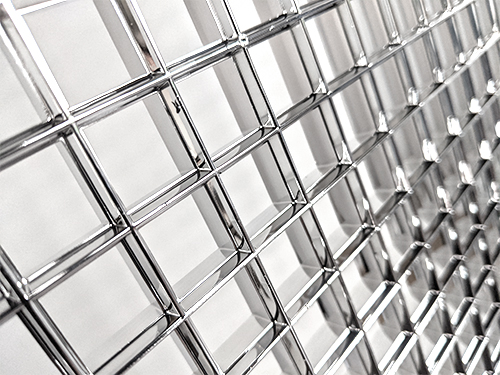

Louver / Light Diffuser

UVC is absorbed by almost all material around us. We experimented and researched materials that will reflect UVC light to expand its reach in a given area while using decorative egg crate louvers. Apart from aluminum, chromium and alumina have excellent reflective properties. Our egg crate louver is made of High Impact Polystyrene and vacuum plated alumina which gives our UVC troffer a modern and appealing look.

*Egg crate Louvers will reduce the radiant flux (intesity of UVC) by about 30%+. Longer exposure time will be necessary for disinfection. An alternative cover for our troffer would be an anodized aluminum expanded grill.

ToroMesh® UVC LED Strips

We used our own patented LED lighting system and fitted them with high quality UVC LED chips emitting UV rays between 265nm-275nm wavelengths.

This lighting system is unique, versatile and easily maintainable.

Online Simulator

We developed an online simulators for all ViroBeam® products to make it easy to calculate the UVC dosage (μW/cm² X time of exposure) required at different heights and radial distances from the source to the area you want to disinfect.

The values obtained using the simulator are calculated using both the Inverse Square Law Formula and Lamberts' Cosine Law to calculate UV intensity. Additionally, we conducted our own tests using UVC sensors and meters to measure Ultraviolet Germicidal Irradiation (UVGI) at specific distances to calibrate the simulator further.

Click here to view simulator.
